Metal Door Steel Frame Roll Making Forming Machine Easy To Operate
Easy to Operate Door Frame Making Line is cold-rolled into various wave-shaped pressed plates. It is suitable for industrial and civil buildings, warehouses, special buildings, roofs, walls and interior and exterior wall decoration of large-span steel structures. It has the characteristics of light weight, high strength, rich color, convenient and quick construction, anti-seismic, fireproof, rainproof, long life and maintenance-free. It has been widely used.
|
|
|
Coil width
|
295mm
|
|
|
Rolling speed
|
12-15m/min(not include cutting & punching time)
|
|
|
Rolling thickness
|
0.8-1.5mm GI, G550
|
|
|
Control system
|
PLC as list in the note
|
|
|
Un Coiler
|
5T hydraulic decoiler
|
|
6
|
Leveling
|
Three rollers four
|
|
7
|
Punching
|
4 sets
|
|
|
Shaft Material and DIA
|
￠65mm, material is 45# forge steel
|
|
|
Roller stations
|
About 19 stations (according the final design)
|
|
|
Roller material
|
Gcr15, HRC55-60 surface coated with chrome
|
|
11
|
Post cutting
|
Hydraulic cutting after roll forming
|
|
12
|
Material Of Cutting
|
Cr12Mov quenching 58-62℃
|
|
|
Maim Motor Power
|
11kw
|
|
|
Hydraulic Station Power
|
5.5kw
|
|
|
Hydraulic Pressure
|
12-16Mpa adjustable
|
|
|
Sturcture Of The Stations
|
Wire-electrode cutting
|
|
|
Electric Source
|
380V, 50HZ,3 phase
According to customer's require
|
|
|
Way Of Drive
|
By chain
|
|
Guarantee
1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances
- Damage occurs due to a natural disaster
- Malfunction occurs due to user error
- Malfunction occurs due to modifications
- Malfunction occurs due to further movement or shipment after installation
Payment terms
40% in advance as down payment
60% is paid before the shipment is processed
Delivery
FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
Product Tags:
|
|

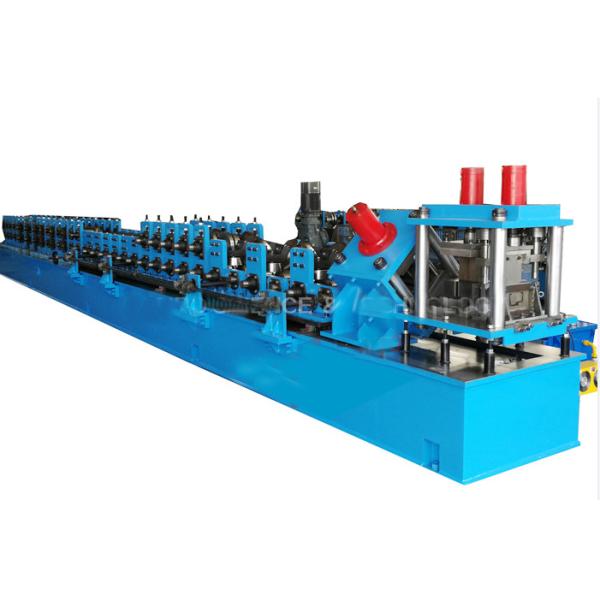

Making 0.8mm Thickness Door Frame Roll Forming Machine 380V Images
|
